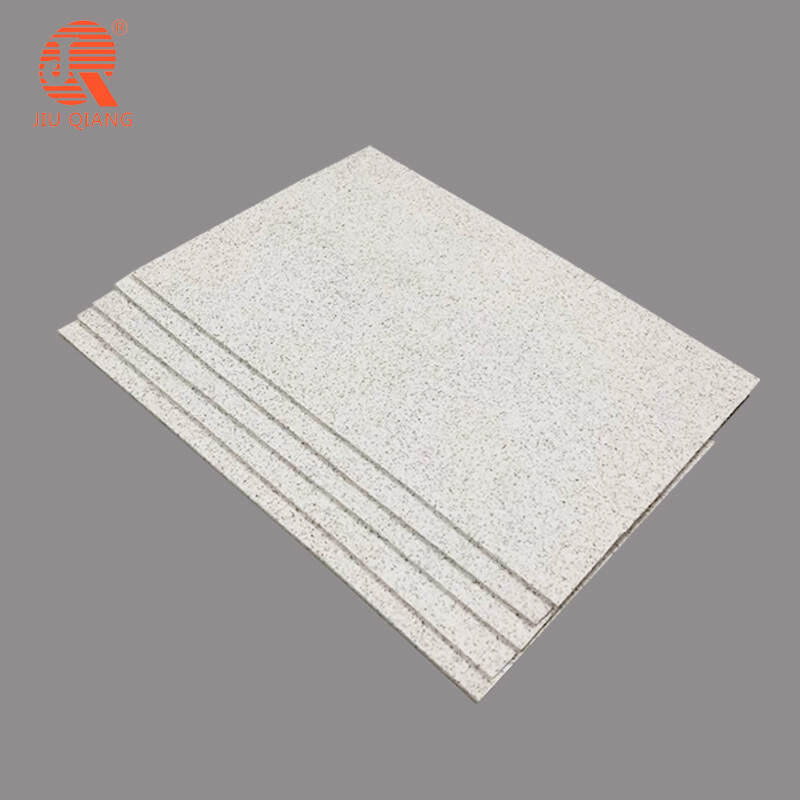

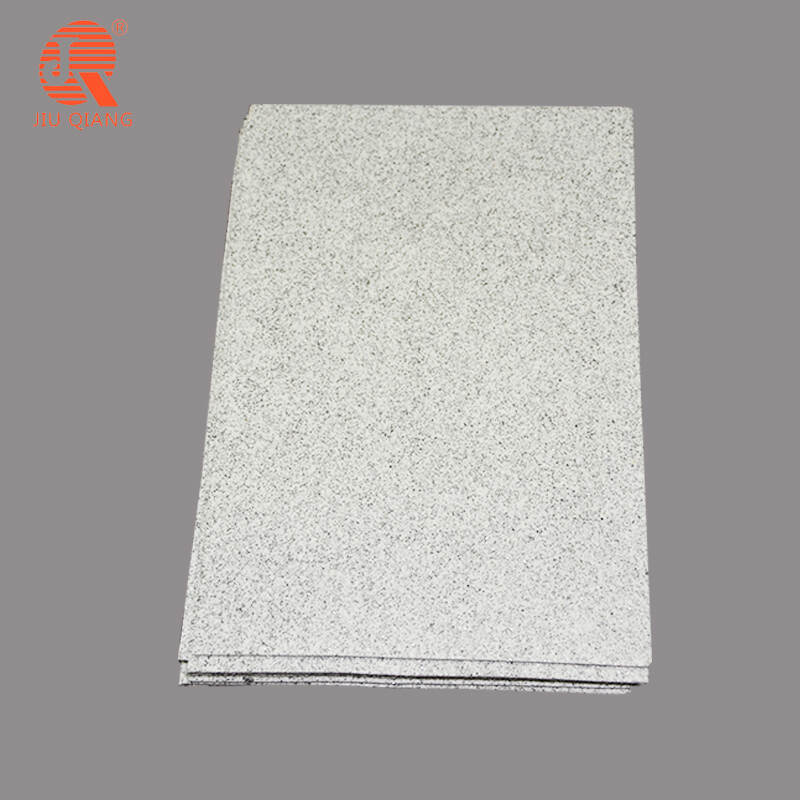

Ceramic Fiber Expanded Graphite Paper
Expanded graphite ceramic fiber paper is a high-performance insulation material made from ceramic fiber cotton and expanded graphite. Through pulping, mixing, molding, drying, and cutting, it forms a flexible, durable, and thermally efficient paper. The expanded graphite enhances sealing performance, making it ideal for high-temperature applications requiring both insulation and sealing. It is widely used in metallurgy, aerospace, automotive, power generation, and chemical industries.
Technical Data
|
Property |
Specification |
|
Classification Temperature |
1260°C |
|
Working Temperature |
1000°C |
|
Density |
250-350 kg/m³ |
|
Expansion Rate |
3-10 times |
|
Product Sizes (mm) |
30,000×610/1220×2 |
Note: All data is for reference only. Maximum temperature resistance depends on working conditions.
Key Features
Low Thermal Conductivity and Heat Storage
Efficiently insulates high-temperature surfaces and minimizes heat loss, enhancing energy efficiency.
Enhanced Sealing Performance
High expansion properties from graphite improve surface contact and sealing effectiveness under thermal stress.
Superior Thermal Stability and Shock Resistance
Maintains integrity during rapid heating and cooling cycles, suitable for fluctuating high-temperature conditions.
High Tensile Strength and Flexibility
Resists tearing during installation and operation, offering ease of handling and durability.
Multi-functional Fireproof and Acoustic Insulation
Offers additional benefits including fire resistance and sound absorption, essential in complex industrial systems.
Safe and Environmentally Friendly
Asbestos-free and resistant to chemical corrosion, supporting safer work environments and long-term performance.
Applications
Industrial Furnaces and High-Temperature Equipment
Used as insulation and sealing material for furnace walls, heating devices, and piping systems exposed to extreme temperatures.
Boiler and Steam Turbine Insulation
Provides thermal protection in high-pressure boilers and steam-driven power equipment, including in nuclear applications.
Chemical Industry Equipment
Applied to reaction vessels, heaters, and high-temperature pipelines to maintain thermal efficiency and prevent leaks.
Construction and Building Fireproofing
Suitable for use in high-rise buildings and critical infrastructure to enhance passive fire protection.
Furnace Doors and Roofs
Ensures durable sealing and thermal insulation on furnace doors, hatches, and overhead structures.
